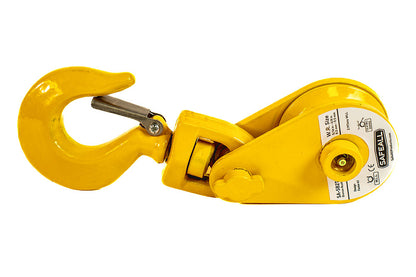

SafeAll Snatch Block with Swivel Hook
SafeAll snatch blocks are indispensable tools for rigging and recovery across various industries. Engineered with precision, these blocks feature a pulley, sheaves, and a swivel hook, creating a pivotal point to alter pull angles or enhance winch capacity under load. Strength-tested for resilience, they excel in off-road recoveries, towing operations, and material handling tasks.
Available in seven sizes and SafeAll's signature green color, these snatch blocks are compatible with both synthetic line and wire rope. Offering pulling capacities ranging from 2 to 15 tons, each block is dual labeled with its Working Load Limit and compatible rope size. Equipped with bronze bushings and a grease zerk, they ensure smooth operation, easy maintenance, and resistance to rust.

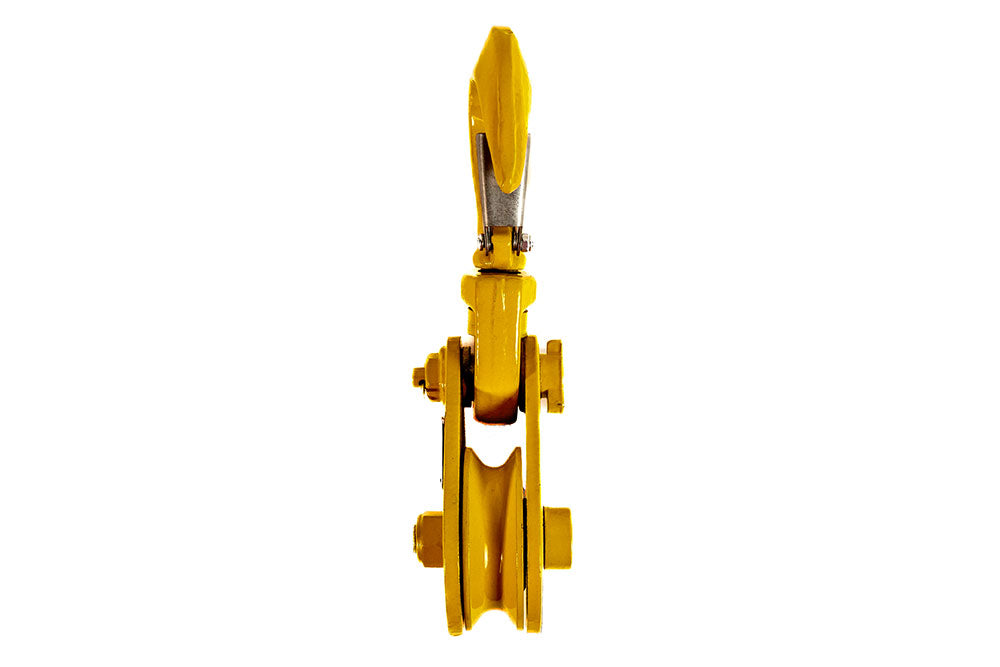

Crafted from premium materials, these snatch blocks comprise a single pulley or sheave encased within two teardrop-shaped side plates. A release pin secured by a cotter key fastens the plates over the pulley, facilitating easy winch line insertion upon removal.
Key Features:
- Compatible with both synthetic line and wire rope
- Seven sheave sizes: 3”-10”
- Working Load Limit: 2 ton-15 ton
- Compatible wire rope size: 5/16”-7/8"
- Swivel hook with latch for secure attachment

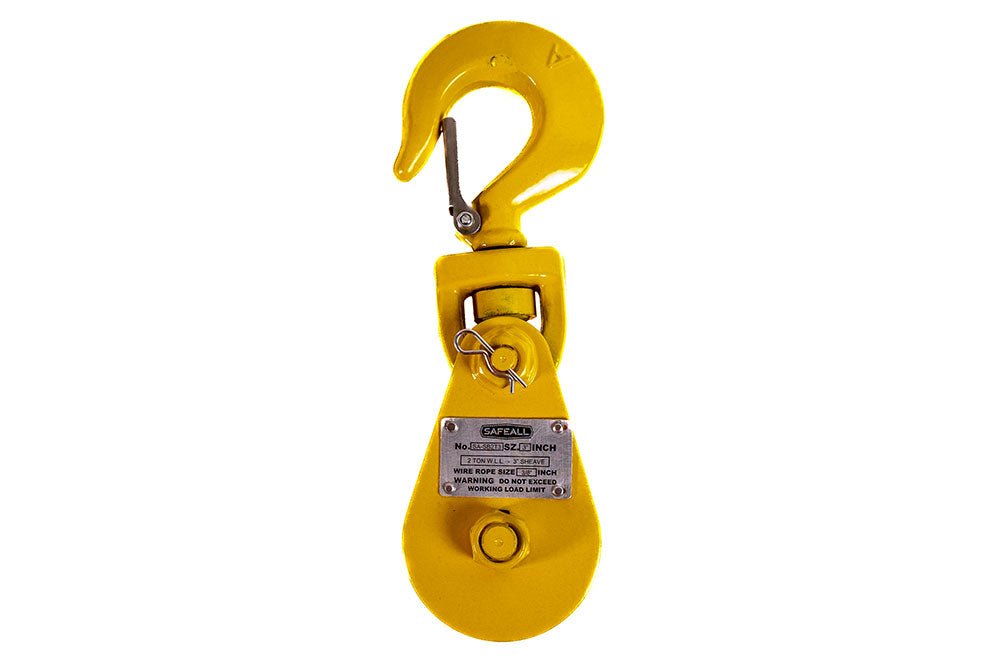

- Dual labeled ratings for clarity
- Bronze bushings for smooth operation
- Grease zerk for easy maintenance
- Painted yellow for visibility and corrosion resistance
Available in the following sizes
Item # | Size | WLL |
---|---|---|
SA-SB2T3 | 3" | 2 Ton |
SA-SB3T3 | 3" | 3 Ton |
SA-SB4T4 | 4" | 4 Ton |
SA-SB8T6 | 6" | 8 Ton |
SA-SB8T8 | 8" | 8 Ton |
SA-SB15T8 | 8" | 15 Ton |
SA-SB15T10 | 10" | 15 Ton |
